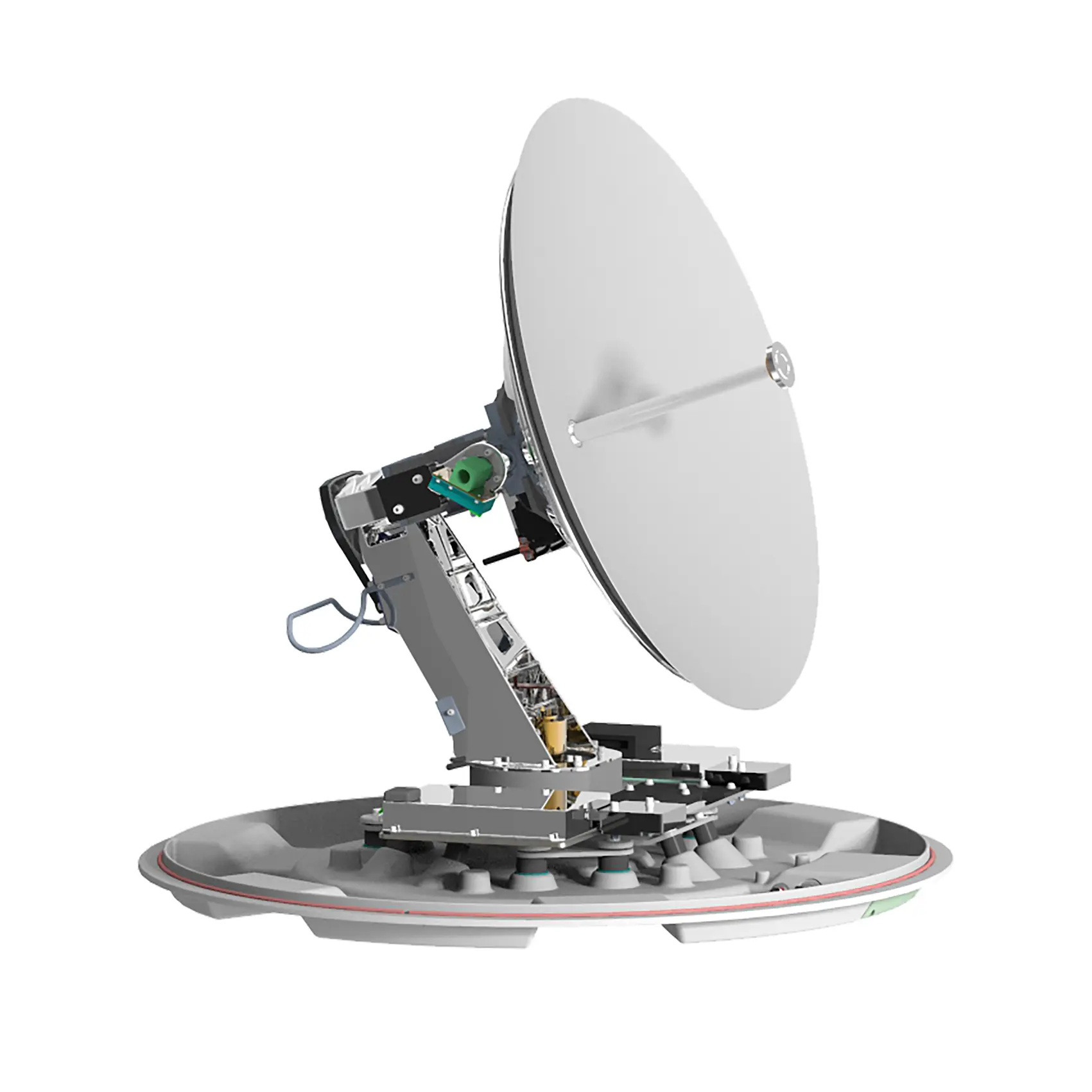

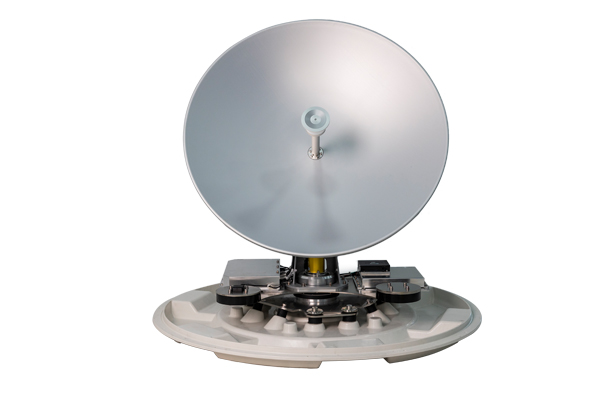

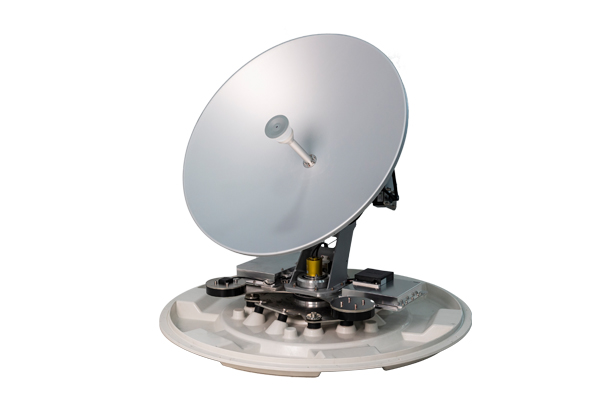

BIRDSAT's new 80 cm KU band maritime VSAT antenna is on board now. The maritime satellite terminals have advantages of higher reliability, lower cost and easy plug-in operation, staying connected with your family, friends and business partners, enjoying normal communication, entertainment and business. This KU band VAST is making offshore life easier, more convenient and more cost effective.
Less signal loss, more integrated module
With the modem integrated inside the radome, the signal transmission loss has been significantly decreased, making it a highly efficient solution among marine VSAT providers. This feature is crucial for maintaining strong and consistent communication, which is a key offering from leading VSAT marine systems.
Simplified installation
With a patented design of a shipborne bracket, there's no need to dismount the radome before installation. One outdoor cable combined with TX, RX and DC power cables all together connects to the radome base directly and makes cost-effective and simplified installation.
Plug & Play
BIRDSAT KU band satellite antenna belongs to VAST terminal equipment that is also featured user-friendly, with a built-in satellite recognition unit, just power on and the antenna will lock the satellite quickly and precisely without any extra manual configuration. This plug-and-play capability is a unique feature among VSAT marine systems, providing a user-friendly experience that requires minimal technical expertise.
Higher wave transmittance, higher strength
By using GFRP material radome, the wave transmittance has been increased and the capability of wind resistance has also been increased.
| Model | Reflector Diameter |
| VS80P | 85cm |
| Stabilization Platform | Dimension（D x H） |
| 3-axis (plus Auto Skew) | 110cm x 109cm |
| Weight | TX Frequency |
| 76kg | 13.75GHz ~ 14.5GHz |
| TX Gain | RX Frequency |
| 40.0dBi @ 14.25GHz | 10.7GHz ~ 12.75GHz |
| RX Gain | Polarization |
| 39.0dBi @ 11.75GHz | Cross-Pol |
| Cross-Pol Isolation | Azimuth Range |
| ＞30dB | Unlimited |
| Elevation Range | Cross-Level Range |
| -10° ~ 110° | ±30° |
| Skew Control | Tracking Modes |
| Automatic, with Pre-set Offset Supported | Carrier Tracking，SNR Direct Tracking |
| Tracking Accuracy | BUC |
| 0.2° RMS | 3W, 6W, 8W, 16W |
| LNB | Operation Temperature |
| Universal LNB (LO 9.75 / 10.6 GHz) | -20°C ~ 55°C |
| Power Input | Modem Interface |
| 85V~264V AC | Ethernet，OpenAMIP |
| Modem Protocol | Ingress Protection Rating |
| iDirect, Newtec, Gilat, THISS | IP56 |
| Wind | |
| 80kn Operational, 110kn Survival |
If you have any BIRDSAT VSAT product inquiry, any be-spoke product question and white label request, please feel free to contact us.
