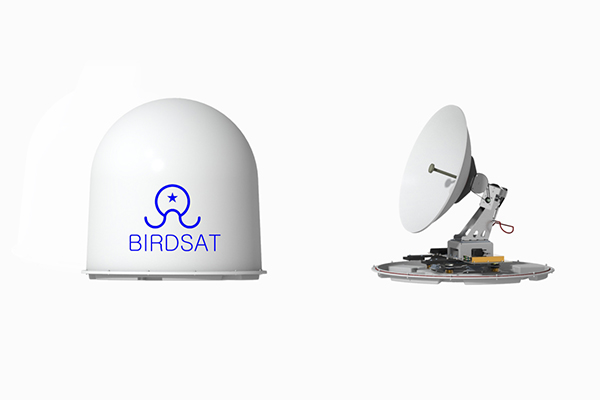

KU Band Maritime VSAT VS100K

BIRDSAT's all-new 100 cm KU band maritime VSAT antenna is coming into the market now. Providing you the real-time information with excellent reliability performance and cost-effective products as well as KU band maritime satellite internet service, BIRDSAT is on the way to keep you connected and your safety. This latest offering from marine VSAT providers highlights BIRDSAT's commitment to delivering high-quality, reliable maritime communication solutions.

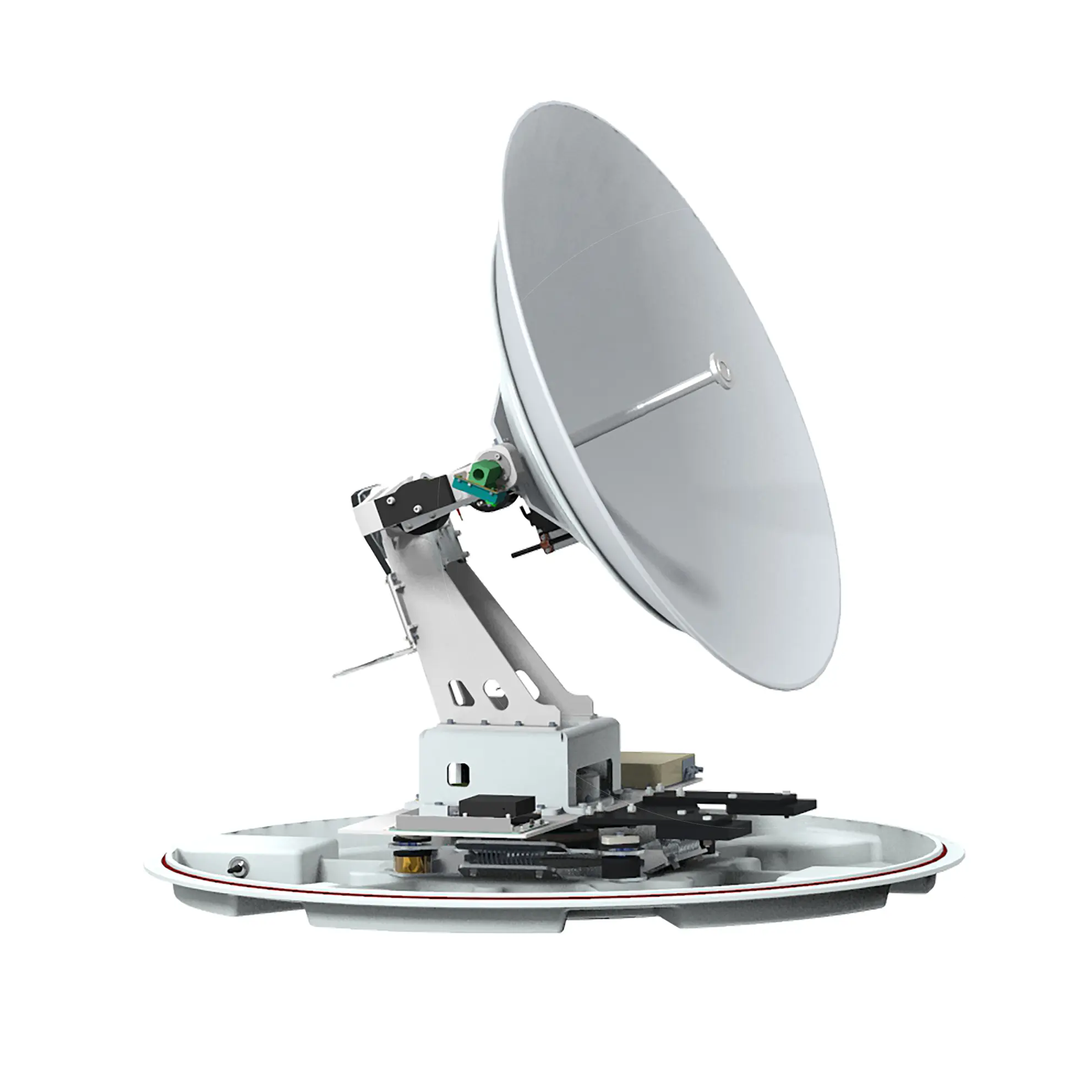

  • 100

Features of KU Band Maritime VSAT VS100K

Features of KU Band Maritime VSAT VS100K
  • Increased signal receive & transmission capability

With improved signal receive and transmission module, BIRDSAT's new VS100 antenna, a leading product in the maritime VSAT market,  can provide more stable real-time connectivity.


  • Higher wave transmittance, higher strength

The new GFRP material radome makes the wave transmittance and wind resistance increased significantly.


  • Easy installation, low cost

The antenna package can be installed directly on the patented shipborne bracket without dismounting the radome. The integration of all 3 cables into one and the inclusion of a modem inside the radome exemplify the efficient and cost-effective solutions offered by VSAT antenna manufacturers. BIRDSAT dedicates to improve the antenna performance but with lower cost.

Specification of KU Band Maritime VSAT VS100K

ModelVS100K
Reflector Diameter105cm
Stabilization Platform3-axis (plus Auto Skew)
Dimension(D x H)138.5cm x 135cm
Weight120kg
TX Frequency13.75GHz ~ 14.5GHz
TX Gain41.3dBi  @ 14.25GHz
RX Frequency10.7GHz ~ 12.75GHz
RX Gain39.8dBi  @ 11.75GHz
PolarizationCross-Pol
Cross-Pol Isolation>33dB
Azimuth RangeUnlimited
Elevation Range-10° ~ 110°
Cross-Level Range±30°
Skew ControlAutomatic, with Pre-set Offset Supported
Tracking ModesCarrier Tracking,SNR Direct Tracking
Tracking Accuracy0.2° RMS
BUC6W, 8W, 16W, 40W
LNBUniversal LNB (LO 9.75 / 10.6 GHz)
Operation Temperature-20°C ~ 55°C
Power Input85V~264V AC
Modem InterfaceEthernet,OpenAMIP
Modem ProtocoliDirect, Newtec, Gilat, THISS
Ingress Protection RatingIP56
Wind80kn Operational, 110kn Survival
