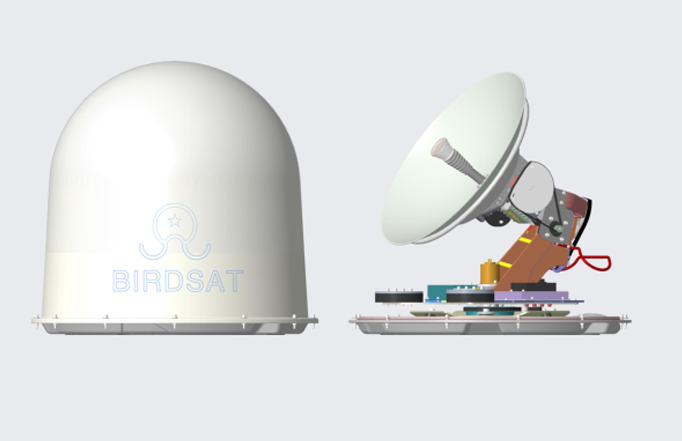

KU Band Maritime VSAT VS60

BIRDSAT's 60 cm KU band maritime VSAT antenna is new onboard now. The VSAT Ku Band continued with BIRDSAT's high quality level, low cost and high reliability. With Birdsat marine satellite antenna, you can always keep connected and have a safe and relaxed life at sea.

  • 60

Features of KU Band Maritime VSAT VS60

Features of KU Band Maritime VSAT VS60
  • Better wave transmittance, higher strength


With upgraded GFRP radome, the wind resistance capability and the wave transmittance of marine vsat antenna has been increased.


  • More integrated module, less signal loss


The signal transmission loss has been significantly decreased due to integrated modem inside the radome.


  • Simplified installation


TX, RX and DC power cables all combined into one cable which connects to the radome base directly. With a patented design of shipborne bracket, there's no need to dismounting the radome before installation.


  • Cost effective


With better quality, lower cost, BIRDSAT marine satellite antennas are always thinking from customer's point of view.

Specification of KU Band Maritime VSAT VS60


ModelReflector Diameter
VS6060cm
Stabilization PlatformDimension(D x H)
3-axis (plus Auto Skew)83cm x 79cm
WeightTX Frequency
52kg13.75GHz ~ 14.5GHz
TX GainRX Frequency
37.0dBi  @ 14.25GHz10.7GHz ~ 12.75GHz
RX GainPolarization
35.5dBi  @ 11.75GHzCross-Pol
Cross-Pol IsolationAzimuth Range
>30dBUnlimited
Elevation RangeCross-Level Range
-10° ~ 110°±30°
Skew ControlTracking Modes
Automatic, with Pre-set Offset SupportedCarrier Tracking,SNR Direct Tracking
Tracking AccuracyBUC
0.2° RMS3W, 6W, 8W
LNBOperation Temperature
Universal LNB (LO 9.75 / 10.6 GHz)-20°C ~ 55°C
Power InputModem Interface
85V~264V ACEthernet,OpenAMIP
Modem ProtocolIngress Protection Rating
iDirect, Newtec, Gilat, THISSIP56
Wind
80kn Operational, 110kn Survival
